Electric Bike Report reviews the ARCC Moulton TSR Electric

Our e-bike retrofit kit is unique in its sophistication and build-quality. With advanced sensors and unbeaten responsiveness, here are some of its advantages.

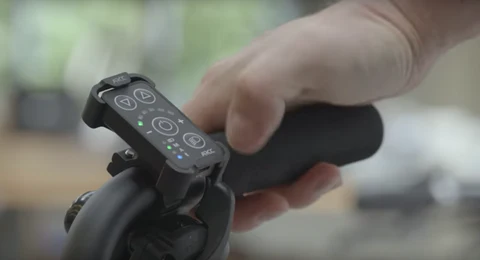

Control On-the-Go

Fitted with a handlebar-mounted Bluetooth controller, the rider can switch between power modes and change the level of assistance on the fly. The exact power output at each level can also be set remotely using an iOS device with the free ARCC Intelligent Drive app.

ARCC Control

Launch Mode

Providing maximum power for three seconds, launch mode gets you ahead of the pack. Activated by applying both brakes and putting pressure on the left pedal and then depressing the brakes, this boost is extremely helpful at junctions and lights, giving you a head start on traffic.

ARCC Abington Bike

Hill Detection

A sensitive inclinometer-accelerometer detects steep climbs and adjusts power output accordingly, giving the sensation of riding on a flat stretch even when tackling tough hills.

Hill detection

Torque Sensor

Equipped with a highly-accurate torque sensor and a cadence meter, the road profile and rider's power inform the responsive motor output. This is more sensitive to real world conditions, providing an intuitive and smooth action which is tailored to your riding style.

Torque sensor

Brake switches

When the brakes are engaged, the electronic brake switches immediately deactivate the motor. This ensures you always are in control of your bike and can come to a safe stop whenever you need to.

Brake switches


The Intelligent Drive Pod only adds 3.9kg to the weight of the bike. When fitted to a Brompton, you can still easily fold your bike and take it up stairs, on the tube, to your desk, etc. It also has very little leads which are neatly tucked to the frame by bespoke cable clips.

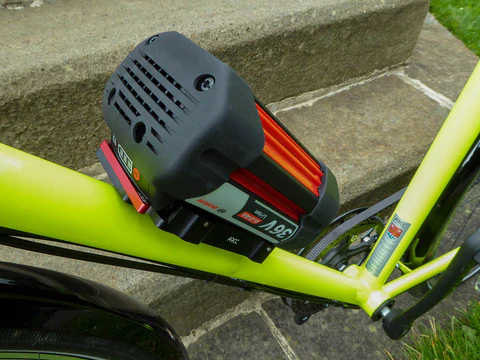

Bosch Battery

The Intelligent Drive Pod uses Bosch batteries as a power source. These are inexpensive and can be bought from most hardware stores. They are very hardy, and have been rated to work after a 3m drop onto concrete (they also come with their own two-year guarantee from Bosch). Compatible with 4.0Ah and 6.0Ah Bosch batteries, they charge in 35-40mins dependant on the charger.

Bosch Battery

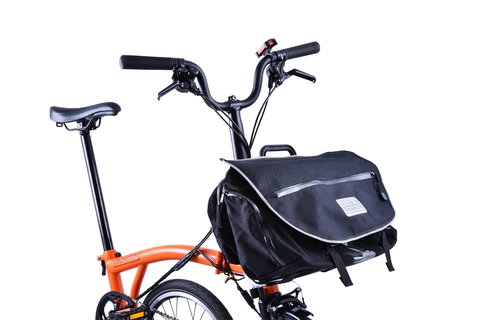

Brompton Bag compatibility

The system can be used with most Brompton bags thanks to a special adaptor, so you can carry spare batteries and other essentials with ease.

Brompton Bag conversion

5-year warranty


The Intelligent Drive Pod itself is highly robust. Most of the components are CNC-machined from solid billets of 5083 grade Alplan aluminium alloy. This is highly durable and resistant to corrosion, and the pieces are polished, hard anodised and weather-sealed. The pod also comes with a five-year guarantee from ARCC Bikes and if you retrofit your Brompton, we will honour the remainder of your existing warranty.

ARCC Workshop

Engineered in Cambridge

Designed, prototyped, and manufactured by ARCC Bikes here at the ARCC Innovations Research & Development site in the Cambridgeshire Tech Cluster, the Intelligent Drive Pod is precision-made utilising the best in CNC-machining and additive manufacturing.

Constantly regulated and updated by a committed team of technicians and product designers, the Intelligent Drive Pod is rigorously tested to a global standard.

Engineered in Cambridge

To experience the Intelligent Drive Pod, visit our test-ride page to book a session today, or find out more about the system here.
